21-23 Ford F-150 Diode Dynamics DD7375 Stage Series Reverse Light Kit C1 Pro

21-23 Ford F-150 Diode Dynamics DD7375 Stage Series Reverse Light Kit C1 Pro

The Diode Dynamics DD7375 Stage Series Reverse Light Kit C1 Pro is engineered to enhance the rear visibility and aesthetics of the 2021–2023 Ford F-150. This advanced lighting solution integrates seamlessly into the vehicle's rear bumper, providing superior illumination for safer reversing and a modern appearance. With its plug-and-play installation, high-output LED pods, and innovative TIR optic technology, this kit offers both functionality and style.

Key Features:

• High-Output LED Pods

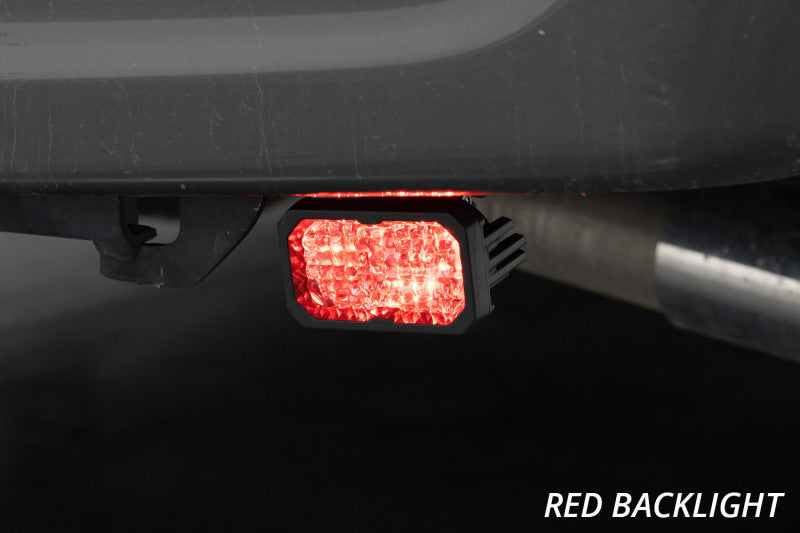

• Integrated Red Accent Backlight

• Plug-and-Play Installation

• Toggle Switch Override

• Designed and Assembled in the USA

Benefits:

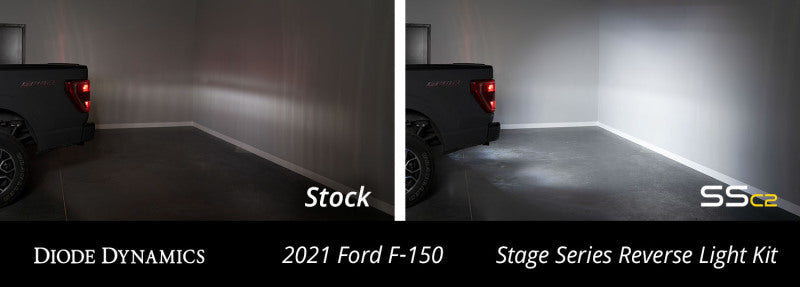

• Enhanced Rear Visibility: Provides bright, clear illumination for safer reversing in low-light conditions.

• Modern Aesthetic Upgrade: The red accent backlight adds a sleek, contemporary look to the vehicle's rear.

• Easy Installation: The plug-and-play system ensures a hassle-free setup without the need for cutting or drilling.

• Reliable Performance: Backed by a 3-year limited warranty, ensuring long-term durability and customer satisfaction.

Product Specifications:

• Size: 2 inches

• Watts (per kit): 2x19W

• Beam Pattern: Flood

• Bulb Type: LED

• Series: Stage Series C1 Pro

• Location: Rear bumper

• Mount Type: Pedestal mount

• Color/Finish: Black

• Light Color: White

• Voltage: 9-16V

• Amperage: 1.5A

• Raw Lumens: 2375

• Measured Lumens: 2300

• Lux at 10M: 9

• Candelas: 925 CD

• Lens Material: Polycarbonate

• Housing Material: Aluminum

• Weatherproof Rating: IP67

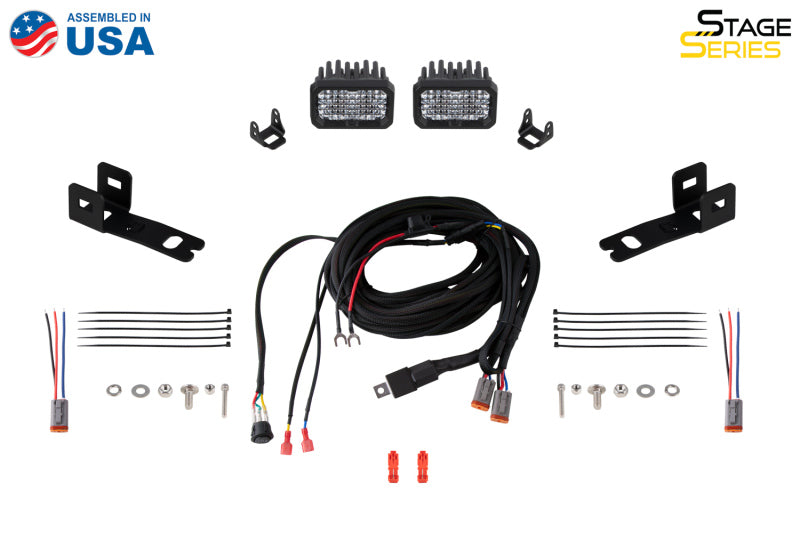

• Included Components:

  • Two (2) Stage Series C1 Pro LED Pods

  • One (1) Adapter Harness

  • One (1) Reverse Light Wiring Harness

  • Two (2) Mounting Brackets

  • Two (2) Universal Mounting Brackets

  • Ten (10) Zip Ties

  • Two (2) T-Taps

  • Mounting Hardware

Install Difficulty Level:

Installation of the Diode Dynamics DD7375 Stage Series Reverse Light Kit is straightforward and user-friendly. With its plug-and-play design, the kit connects directly to the vehicle's factory wiring without the need for cutting or drilling. The typical installation time is approximately 1 hour, making it accessible for both novice and experienced installers.

Vehicle Fitment:

• Make: Ford

• Model: F-150

• Years: 2021, 2022, 2023

• Engine Options: 2.7L V6 EcoBoost, 3.0L V6 Power-Stroke, 3.3L V6, 3.5L V6 EcoBoost, 3.5L V6 EcoBoost Limited, 3.5L V6 PowerBoost, 5.0L V8
  Note: Not compatible with Raptor and Tremor trim levels.
