21–25 Ford Bronco (Sport) – Diode Dynamics DD7174 SSC1 LED Fog Light Kit

Upgrade the lighting performance of any 2021–2025 Ford Bronco Sport with the Diode Dynamics DD7174 SSC1 LED Fog Light Kit—a seamless, bolt‑on enhancement that balances factory aesthetics with aggressive illumination. Featuring road‑legal SAE‑compliant TIR optics and powerful Osram Boost HX LEDs, this kit casts a broad, glare‑free fog beam while doubling as an amber accent light. Designed and assembled in the USA with plug‑and‑play installation, it provides unmatched brightness, reliability, and style for off‑road and on‑road adventures.

Key Features

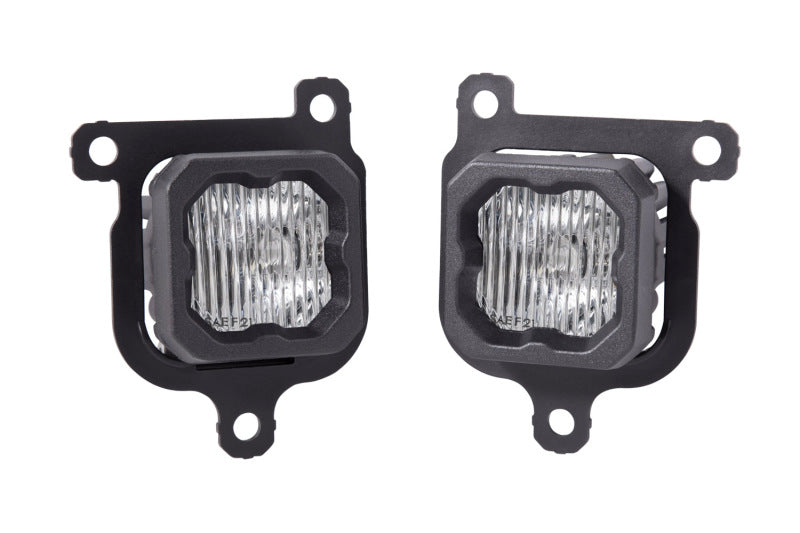

• Direct bolt‑in replacement for factory fog lamps

• Custom-engineered Total Internal Reflection (TIR) optics

• SAE J583–compliant fog‑beam output across a 98° spread

• Osram Boost HX 20 W LED chip delivering intense cool‑white (6000 K) or selective yellow (3000 K) lighting

• Integrated amber backlight for unique accent lighting

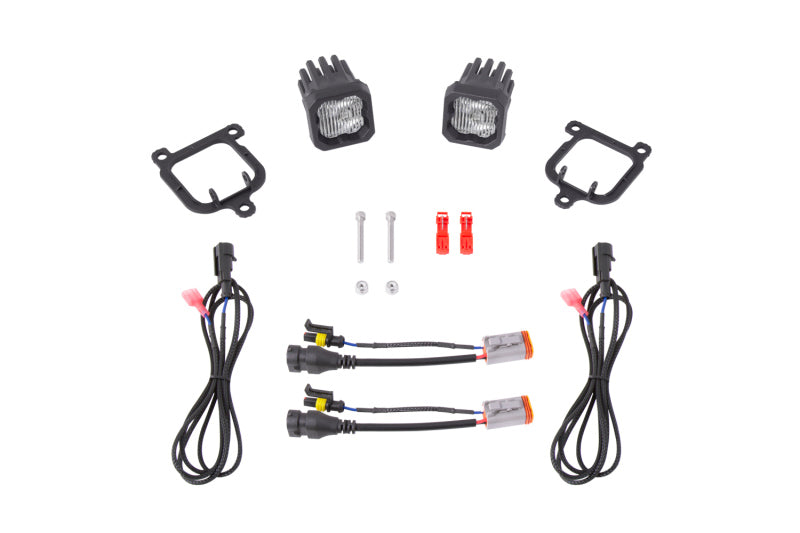

• Plug‑and‑play wiring with included H11 DT 4‑pin adapters; no splicing needed

• Durable Deutsch‑style connectors, polycarbonate lens, and aluminum housing

• IP67 waterproofing; rated for –40 °F to 185 °F operation

• Engineered and assembled in the U.S.

Benefits

• Superior visibility: Custom optics focus bright, wide fog illumination without glare

• Dual‑function lighting: Main beam plus amber backlight offers both utility and style

• Easy installation: No extra wiring or modifications required—swap factories in minutes

• Built to last: Rugged build withstands extreme temperatures, vibrations, and moisture

• Lifetime warranty: Backed by Diode Dynamics’ lifetime limited warranty + 30‑day no‑restock returns policy

• Peace of mind: SAE‑compliant and road-legal; includes warranty coverage against defects

Specifications

• Size: ~2 × 2 × 2.4 in per pod

• Color options: Cool white (6000 K) or selective yellow (3000 K)

• Lens: Polycarbonate, integrated with optic

• Housing: Cast aluminum with pin‑fin heat sink

• Max power draw: ~19 W per main beam, 0.3 W backlight

• Operating voltage: 9–16 V, 1.5 A @ 12.8 V

• Waterproof rating: IP67

• Operating temp: –40 °C to 85 °C (–40 °F–185 °F)

• Connector: Deutsch DT input; includes H11 DT adapter

• Warranty: Lifetime limited; 30‑day returns

Install Difficulty Level

Installation is straightforward and suitable for most enthusiasts. The entire kit can be installed from wheel‑well access in approximately 30–60 minutes using a basic toolset. No drilling, wiring splices, or bumper removal required—just unbolt, plug in, and aim.

Vehicle Fitment

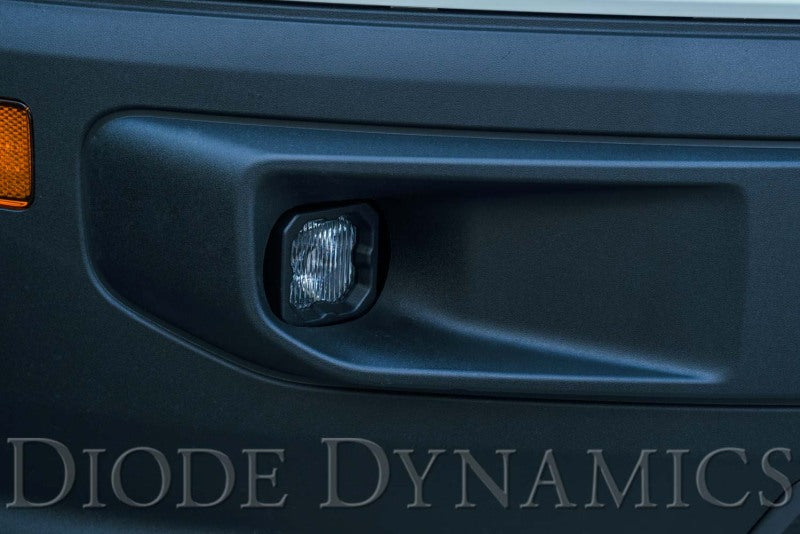

Compatible with 2021–2025 Ford Bronco Sport models equipped with OE fog lamps. Kit is designed for exact fitment with factory fog lamp mounting bezels and wiring harness.
